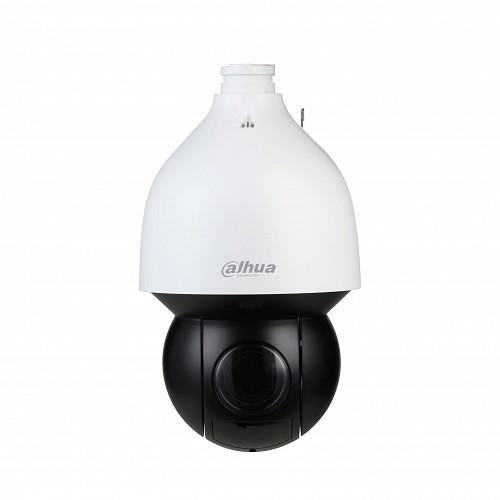

Dahua IP 2.0MP PTZ 4.8-120mm Starlight WizSense SD5A225GB-HNR 1/2.8" 2Megapixel STARVIS™ CMOS Powerful 25x optical zoom Max. 25/30 fps@2M IR distance up to 150 m Auto Tracking 3.0 Face Detection SMD 4.0 Quick Pick PoE+ IP67, IK10 Camera Image Sensor: 1/2.8” STARVIS™ CMOS Effective Pixels: 1920 (H) × 1080 (V) RAM/ROM: 1G/4G Scanning System: Progressive Electronic Shutter Speed: 1/3s~1/30,000s Minimum Illumination: Color: 0.005 [email protected] / B/W: 0.0005 [email protected] / 0 Lux (IR on) IR Distance: Distance up to 150m IR On/Off Control: Zoom Prio,Auto/Manual/Smart IR IR LEDs: 4 Lens Focal Length: 4.8 mm–120 mm Max. Aperture: F1.6 ~ F3.5 Angle of View: H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2° Optical Zoom: 25x Focus Control: Auto/Semi-Auto/Manual Close Focus Distance: 0.1 m–1.5 m   Iris Control : Auto/Manual/Fixed PTZ Pan/Tilt Range: Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° Manual Control Speed: Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s Preset Speed: Pan: 400° /s; Tilt: 300° /s Presets: 300 Pattern : 5 Scan : 5 Speed Adjustment : Support Power-off Memory : Support Idle Motion : Preset/Tour/Pattern/Scanning Protocol : DH-SD / Pelco-P/D(Auto recognition) Intelligence IVS (Perimeter Protection) : Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification Face Detection : Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache and expressions. The expressions are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots Auto Tracking : Yes Quick Pick : With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events SMD : Yes Video Compression : H.265; H.264B; H.264M; H.264H; MJPEG (Sub Stream); H.265+; H.264+ Streaming Capability : 3 streams Resolution : 1080p (1920 × 1080); 1.3 M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) Frame Rate : Main stream: 1080p/1.3 M/720p (1–50/60 fps) / Sub stream 1: D1/CIF (1–25/30 fps) / Sub stream 2: 1080p/1.3M/720p/D1/CIF (1–25/30 fps) Bit Rate Control : Variable/Constant Bit Rate : H.264: 3 Kbps–20480 Kbps / H.265: 3 Kbps–20480 Kbps Day/Night : Auto (ICR)/Color/B/W BLC : Support WDR : 120 dB HLC : Support White Balance : Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp Gain Control : Auto/Manual Noise Reduction : 2D/3D Motion Detection : Support Region of Interest (RoI) : Support Image Stabilization : Electronic Defog : Electronic Digital Zoom : 16x Flip : 180° Privacy Masking : Up to 24 areas, and up to 8 areas in the same view S/N Ratio : ≥ 55 dB Audio Compression: PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 Network Ethernet: RJ-45 (10Base-T/100Base-TX) Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP/SUPPLIER (DAHUA) (IP), UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x Interoperability: ONVIF, PSIA, CGI Streaming Method: Unicast / Multicast Max. User Access: 20 users Edge Storage: NAS (Network Attached Storage), Local PC for instant recording, Micro SD card 128GB Web Viewer: IE, Chrome, Firefox, Safari Management Software: Smart PSS, DSS Smart Phone: IOS, Android Certifications CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 Interface Alarm I/O : 2/1 Audio I/O : 1/1 Two-way Audio : Yes Alarm Linkage : Capture; preset; tour; pattern; recording; triggering on-off value output; audio; sending email Alarm Event : Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection Electrical Power Supply: DC 24V/2,5A, PoE+(802.3at) Power Consumption: Basic: 13 W / Max.: 22 W (illuminator + PTZ working) Environmental Operating Conditions: -40°C ~ 70°C (-40°F ~ +158°F)  Operating Humidity : ≤95% Ingress Protection: IP67; IK10; 6000V lightning proof; surge protection; voltage transient protection Construction Dimensions: Φ190 mm × 332 mmNet Weight: 4.7kgGross Weight: 8kg
