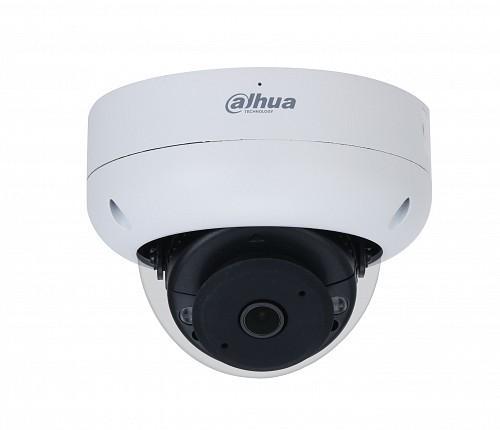

Dahua IP Lite AI 4.0MP 2.1mm Dome HDBW3441R-AS-P-0210B     4-MP 1/2.7" CMOS starlight-grade image sensor, low luminance, and high definition image Outputs 4 MP (2688 × 1520) @25/30 fps, and supports max. 5 MP (2880 × 1620) @20 fps H.265 codec, high compression rate, ultra-low bit rate Built-in IR LED, and the max. illumination distance is 15 m ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in MIC 12 VDC/PoE power supply IP67, IK10 protection EPTZ: Enlarge and track the targets of intelligent alarms SMD 3.0 Camera Image Sensor : 1/2.7" CMOS Max. Resolution : 2880 (H) × 1620 (V) ROM : 128 MB RAM : 512 MB Scanning System : Progressive Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s Min. Illumination : 0.01 [email protected] (Color, 30 IRE) / 0.001 [email protected] (B/W, 30 IRE) / 0 lux (Illuminator on) S/N Ratio : >56 dB Illumination Distance : 15 m (IR LED) Illuminator On/Off Control : Auto Illuminator Number : 3 (IR LED) Pan/Tilt/Rotation Range : Pan: 0°–355° / Tilt: 0°–80° / Rotation: 0°–355° Lens Lens Type : Fixed-focal Lens Mount : M12 Focal Length : 2.1 mm Max. Aperture : F2.0 Field of View : LDC is disabled: Horizontal : 180°; Vertical: 78°; Diagonal: 180° LDC is enabled (by default) : Horizontal: 170°; Vertical: 75°; Diagonal: 175° Close Focus Distance : 0.6 m  Intelligence IVS (Perimeter Protection) : Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) SMD 3.0 : Less false alarm, longer detection distance Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Video Video Compression : H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) Smart Codec : Smart H.265+; Smart H.264+ AI Coding : AI H.265; AI H.264 Video Frame Rate : Main stream: 2880 × 1620 @(1–20 fps )/2688 × 1520 @(1–25/30 fps ) / sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) third stream:1920 × 1080 @ (1–25/30 fps) Stream Capability : 3 streams Resolution : 5M (2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536); 2304 × 296 ; 1080p(1920 × 1080);1.3M (1280 × 960); 720p(1280×720); D1 (704× 576/704×480); VGA(640 × 480); CIF(352 × 288/352 × 240) Bit Rate Control : CBR/VBR Video Bit Rate : H.264: 3 kbps–8192 kbps; / H.265: 3 kbps–8192 kbps Day/Night : Auto (ICR)/Color/B/W BLC : Yes HLC : Yes WDR : 120dB Scene Self-adaptation (SSA) : Yes White Balance : Auto; natural; street lamp; outdoor; manual; regional custom Gain Control : Auto; Manual Noise Reduction : 3D NR Motion Detection : OFF/ON (4 areas, rectangular) Region of Interest (RoI) : Yes (4 areas) Smart Illumination : Yes Defog : Yes Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower) Mirror : Yes Privacy Masking : 4 areas Audio Built-in MIC : Yes Audio Compression : G.711a; G.711Mu; PCM; G.726; G.723 Alarm Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; SMD; security exception Network Network Port : RJ-45 (10/100 Base-T) SDK and API : Yes Cyber Security : Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade Network Protocol : IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI; P2P User/Host : 20 (Total bandwidth: 64 M) Storage : FTP; SFTP; Micro SD card (support max. 256 GB); NAS Browser : IE / Chrome / Firefox Management Software : Smart PSS; DSS; DMSS Mobile Client : iOS; Android Certifications CE-LVD:EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 Port Audio Input : 1 channel (RCA port) Audio Output : 1 channel (RCA port) Alarm Input : 1 channel in: 5 mA 3–5V DC Alarm Output : 1 channel out: 1,000 mA 30V DC/500mA 50V DC Power Power Supply : 12 VDC/PoE Power Consumption : Basic: 3.2W (12 V DC); 3.9 W (PoE) / Max. (H.265+main stream/IR intensity+IR on): 6.4 W (12V DC); 7.7 W (PoE) Environment Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F) Protection : IP67, IK10 Structure Casing : Metal Product Dimensions : 94 mm × Φ122.0 mm Net Weight : 500 g Gross Weight : 770 g
