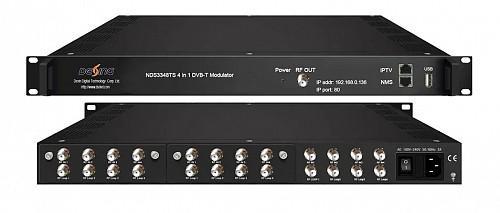

DEXIN NDS3348TS 12 DVBS To 4 DVB-T Transmodulator NDS3348TS is a high performance and cost-effective DVB-T Transmodulator. It supports 12 DVB-S tuner inputs, after multiplexing, and modulating process, then it gives 4 RF output. To meet customers’ various requirements, this device is also equipped with 128 IP input and 4 MPTS output over UDP and RTP. Its pluggable structure design greatly facilitates the change of modules as needed. Moreover, NDS3348TS can support Biss descrambling and can be upgraded and controlled through network system, which allows it to be widely used in setting up digital broadcasting network and provide good signals for scientific laboratory and DVB-T STB. 12 DVB-S2 FTA Tuner input ports Support maximum 128 IP input(MPTS/SPTS) over UDP and RTP protocol Support Biss descrambling Support 4 groups multiplexing +4 groups DVB-T modulating 4*DVB-T carrier output and 4 IP (MPTS) output over UDP and RTP protocol Integrated demodulating and multiplexing functions Support accurate PCR adjusting Support A/V PID filtering, PID remapping Support PSI/SI rebuilding and editing Web-based NMS management Tuner Input: 12 DVB-S2 FTA Tuner input ports 128 IP(SPTS/MPTS) input over UDP and RTP, RJ45, 1000M/100M  Unicast/Multicast          DVB-S Input Frequency: 950-2150MHz Symbol rate: 2-45Msps Signal Strength: -65~-25dBm FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8 QPSK BISS descrambling: Mode 1, Mode E (Up to 850Mbps) (descramble individual program) Multiplexing Maximum PID Remapping: 256 per input channel Function: PID remapping, A/V PID filtering, Accurate PCR adjusting, Generate PSI/SI table automatically Modulation Standard: EN300744 FFT mode: 2K, Bandwidth: 6M, 7M, 8M Constellation: QPSK, 16QAM, 64QAM Guard Interval: 1/4, 1/8, 1/16, 1/32 FEC: 1/2, 2/3, 3/4, 5/6, 7/8 MER: ≥42 dB RF frequency: 50~960MHz, 1KHz step RF out: 4*DVB-T adjacent carriers combined output, 40M total bandwidth limitation RF output level: -28~ -3 dBm (79~105 dbµV), 0.1db step Stream out 4*MPTS over UDP and RTP out , RJ45, 1000M/100M, Unicast/Multicast System Web-based NMS support Ethernet software upgrading General Dimension: (W*D*H): 482mm×300mm×44.5mm Temperature: 0~45℃(Operation) ; -20~80℃(Storage) Power: AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ
